1.Product Introduction

The programmable CNC remote control PHB10 is suitable for wireless
remote control operation of various CNC systems. It supports user-defined
programming to develop button functions, and realize remote control of various
functions on the CNC system; it supports user-defined programming to develop
LED lights to light up and turn off, and realize dynamic display of system status;
the remote control comes with a rechargeable battery and supports Type-C
interface charging.

2.Product features

1. Using 433MHZ wireless communication technology, the wireless operation
distance is 80 meters;
2.Using automatic frequency hopping function, 32 sets of wireless remote
controllers can be used at the same time without affecting each other;
3.Support 32 custom button programming;
4.Support 9 custom LED light display programming;
5.Support IP67 waterproof level;
6.Support standard Type-C interface charging; 5V-2A charging specification;
1100 mAh large capacity battery, with automatic sleep standby function; realize
ultra-long low power standby;
7.Support real-time display of power.

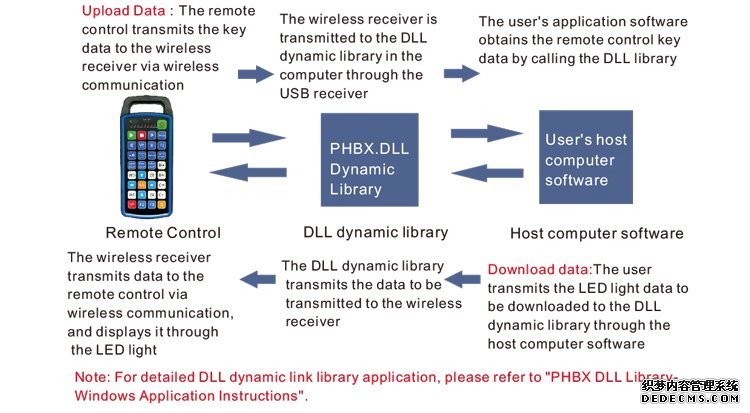

3.Working principle

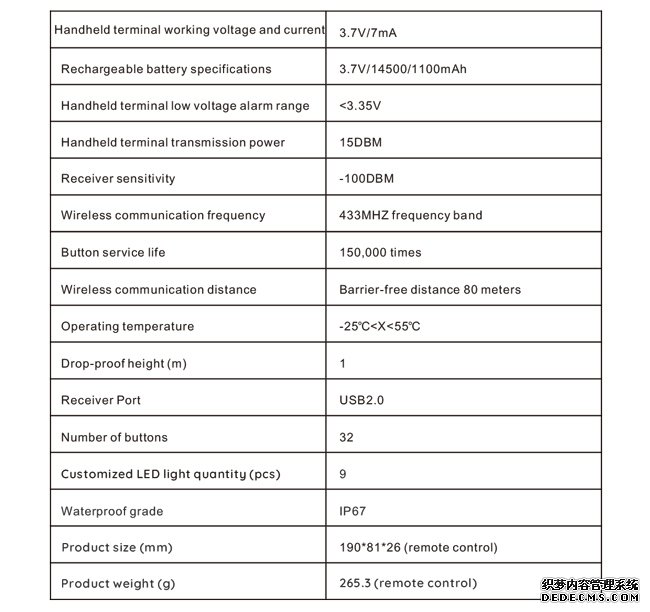

4. Product specifications

5.Product function introduction

Notes：

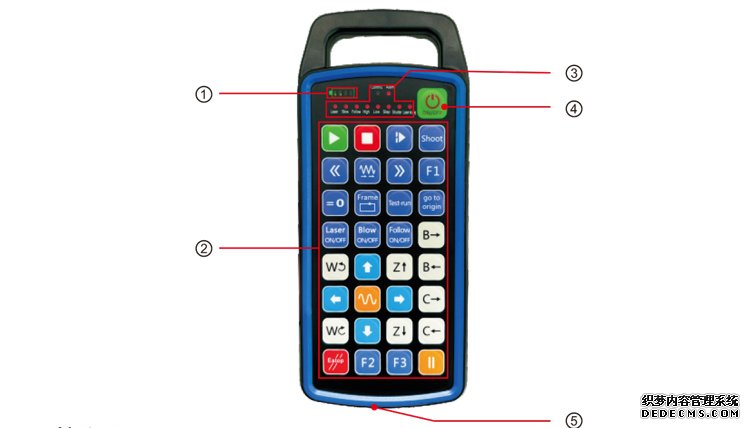

①Battery level display：
Lights up after power on, turns off after power off;
If the battery indicator light is only one bar and keeps flashing, it means the
battery is too low. Please replace the battery;

If the battery indicator lights are all on and the other LED lights flash back and
forth, it means the battery is very low. Please replace the battery;
If the battery indicator does not light up or go out, and the device cannot be
started by pressing and holding the power button, please replace the battery;

②Button area：32 buttons arranged in 4X8, user-defined programming;

③Status LED：
COMMU: Button indicator light, lights up when the button is pressed and goes
out when the button is released; other lights are custom displays;

④Power switch：
Long press for 3 seconds to turn on, long press for 3 seconds to turn off;
⑤Charging port：
Use Type-C charger to charge, charging voltage 5V, current 1A-2A; charging
time 3-5 hours;

When charging, the power indicator flashes, indicating that it is charging. When
fully charged, the power indicator will show full bar without flashing.

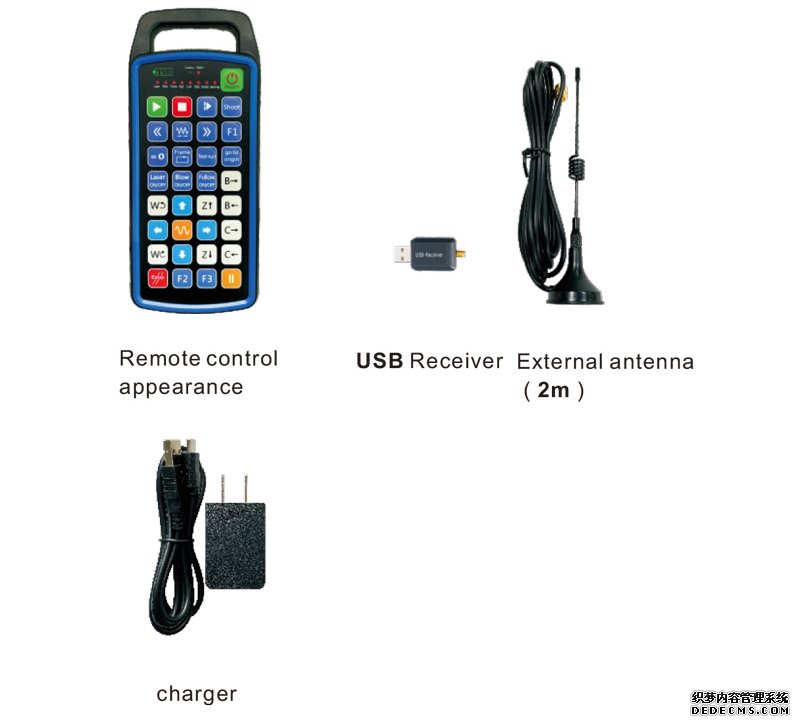

6.Product accessories diagram

7.Product Installation Guide

1 . I nsert the USB receiver into the computer, the computer will automatically
recognize and install the USB device driver without manual
2. Insert the remote control into the charger. After the battery is fully charged, press
and hold the power button for 3 seconds. The remote control will turn on and the power
indicator will light up, indicating that the power-on is successful.
3. After powering on, you can perform any button operation. The remote control
can support dual button operation at the same time. When you press any button, the
COMMU light on the remote control will light up, indicating that this button is valid.

8.Product Operation Instructions

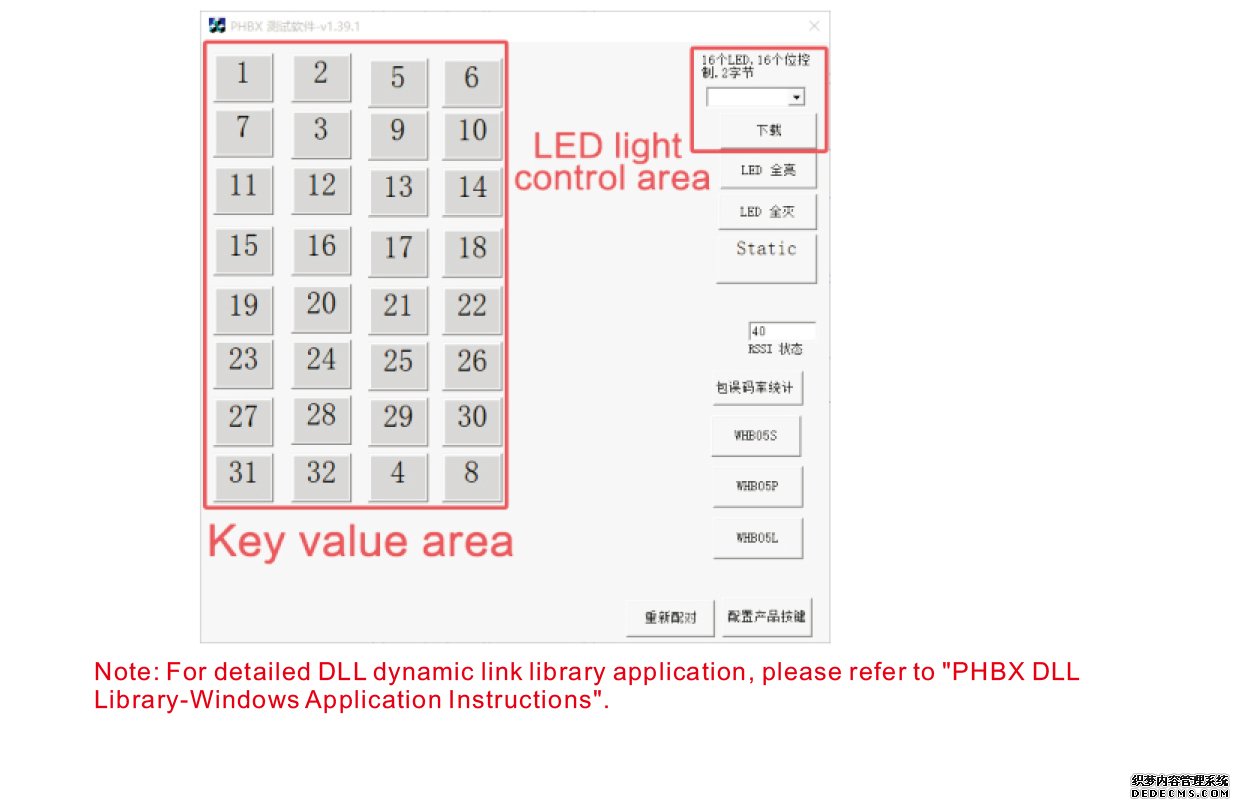

Before product development and use, you can use the demo software we provide to
test the buttons on the remote control and the LED light on the remote control. You can
also use the demo as a reference routine for future programming development.
Before using the Demo software, please plug the USB receiver into the computer,
make sure the remote controller has sufficient power, press and hold the power button to t
urn it on, and then use it;
When any button on the remote control is pressed, the test software demo will display
the corresponding key value. After releasing it, the key value display disappears,
indicating that the key upload is normal;
You can also select the LED light number on the test software demo, click download,
and the corresponding light number on the remote control will light up, indicating that the
LED light is downloading normally.

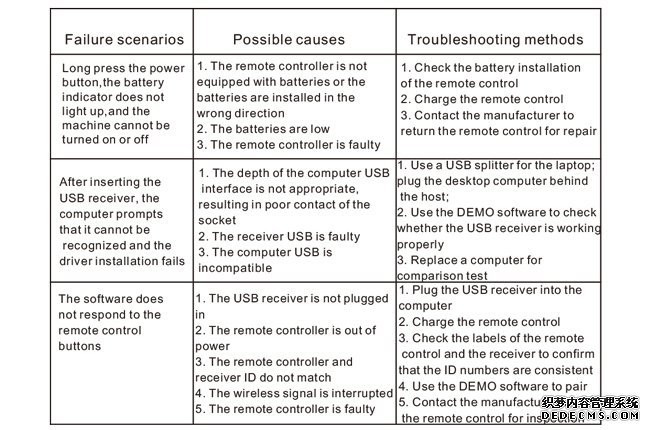

9.Product Troubleshooting

10. Maintenance and care

1. Please use it in a dry environment with normal temperature and pressure to extend
the service life;
2. Do not use sharp objects to touch the key area to extend the service life of the key;
3. Please keep the key area clean to reduce key wear;
4. Avoid squeezing and falling to cause damage to the remote control;
5. If not used for a long time, please remove the battery and store the remote control
and battery in a clean and safe place;
6. Pay attention to moisture-proof during storage and transportation.

11.Safety Information

1. Please read the instructions carefully before use. Non-professionals are prohibited from
operating.
2. Please use the original charger or a charger produced by a regular manufacturer with the
same specifications.
3. Please charge in time to avoid incorrect operation due to insufficient power causing the
remote control to be unresponsive.
4. If repair is required, please contact the manufacturer. If the damage is caused by self-repair,
the manufacturer will not provide warranty.
