1、Applications
MKX-IV has 3 series：
1. MK3-IV：3 axis motion card.
2. MK4-IV：4 axis motion card.
3. MK6-IV：6 axis motion card.
works with Mach3 CNC system under all windows platform

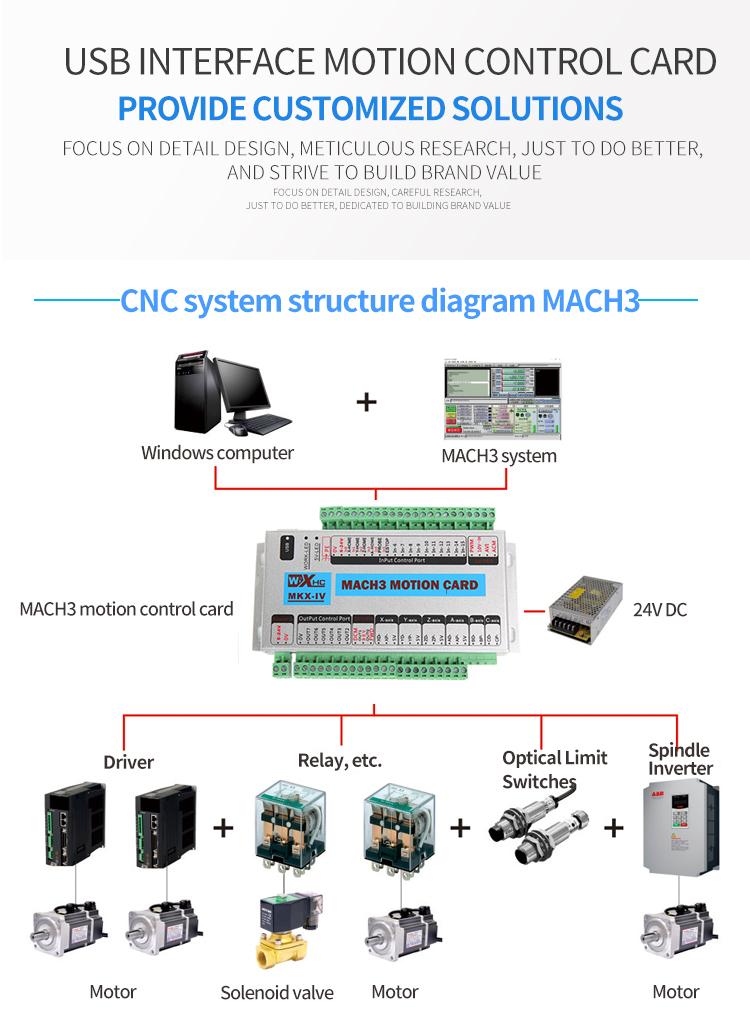

2、Application overview
3、Product overview
4、Signal connection

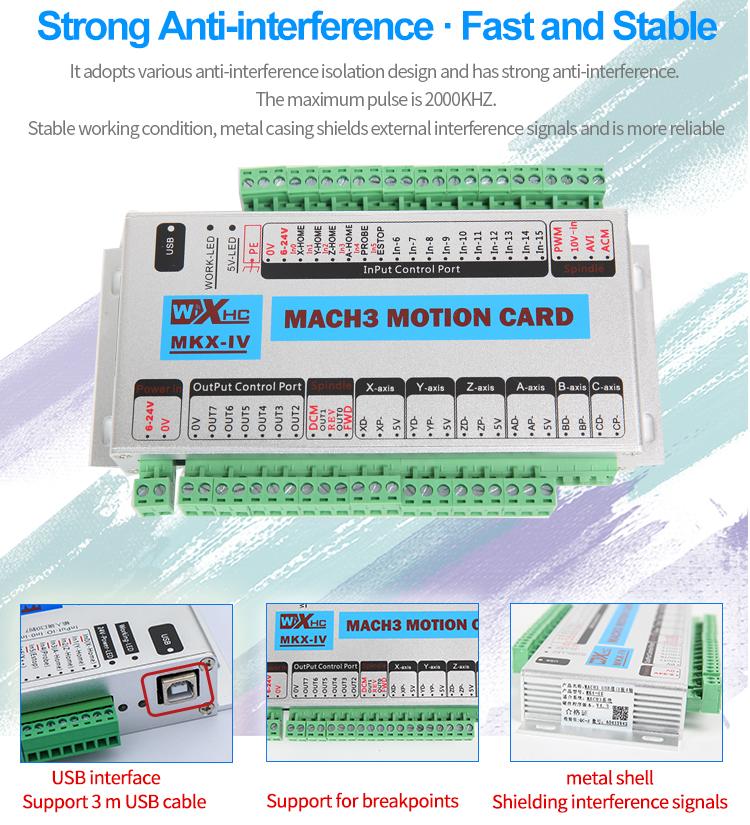

5、Key feature
1.Standard usb device and work at all windows with usb hot plug.
2.The card state is monitored.
3.Support 6 axis to motion at the same time.
4.Step Pulse frequncy Up to 2000khz，support servo and step motor driver.
5.The usb state indication with LED
6.All io is isolated,anti-noise and stable performance
7.Spindle control with PWM and step/pulse
8.Aluminum shell,shield the interference.
6、General Characteristics
| Parameter | Description | |
|
Axis drive control：
|
Isolated oc output | Voltage:5V,maximum load :20A |
| type | STEP/DIR | |
| Maximum Step frequency | 2000KHZ | |
| Number of support axis |
MK3-IV：3 axis MK4-IV：4 axis MK6-IV：6 axis |
|
| Spindle control | Analog output voltage | 0-10V |
| Digital PWM output | 5V,1KHZ,fill factor:%1-100% | |
| STEP/DIR |
Minimum frequncy：15Hz Maximum frequncy：4KHz |
|
| 8 digital output | Maxmimum load of output line | 50mA |
| Maxmimum voltage on out line | 25V | |
| 16 digital input | Maxmimum load of input line | 5mA |
| maximum voltage on input line | 25V | |
| PC connection | Standard USB2.0 | |
7、Attachments
| MKX-IV motion card |
1 piece |
| Use wire | 1 piece |
| Driver disk | 1 disk |
| MACH3-USB trouble shooting | 1 book |
| MACH3 config and driver installation | 1 book |
| MKX –IV user Manual | 1 book |
| Package box size | 275*144*42mm |
| weigtht | 0.7KG |
